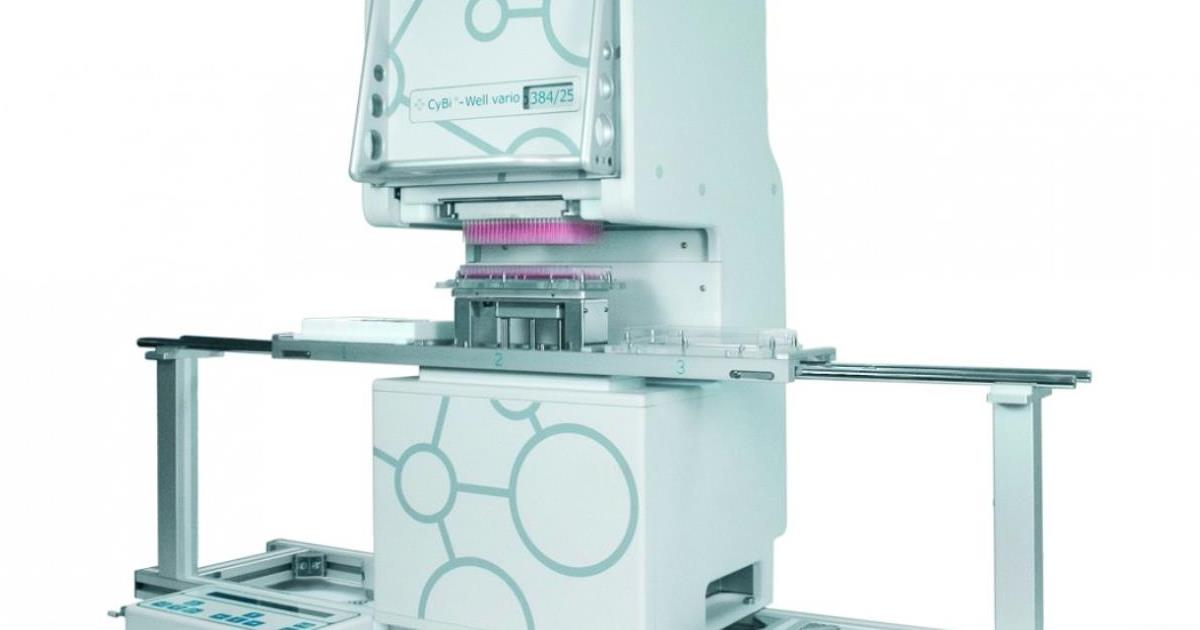

CyBio®-Well vario: 96-, 384- and 1536-channel simultaneous pipetting system
The CyBio®-Well vario is an automated, simultaneous pipetting platform, which accepts a series of different interchangeable pipetting heads, thus combining high flexibility with upgradeability for future tasks at a reasonable price.
The CyBio®-Well vario includes an automated base which accepts 7 different interchangeable simultaneous pipetting heads. The heads can be changed quickly and easily either at the front or the back of the instrument. After head exchanges there is no need for recalibration, the pipetting heads maintains its calibration. A three, four, five or ten – position carriage handles high-precision pipetting needs with high flexibility and ample deck space to run the application successfully. A working volume range of four orders of magnitude allows liquid transfers from 25 µl up to 250 µl on one platform, either with 96 or 384 disposable tips. The CyBio®-Well vario adapts into any screening environment and it is compatible with all other accessories of the CyBio®-Well family. The innovative CyBio® Composer software supports the flexibility of the system and automatically detects which pipetting head is used.
The CyBio®-Well vario adapts into any screening environment and is compatible with all other CyBio accessories.
Key features
- Extremely flexible through enormous volume spectrum
- Highest precision in the whole volume range
- Unique pipetting technology prevents cross contamination
- Easy application set-up using CyBio®Composer software
- Saves reagent costs with accurate low volume pipetting
Product specifications
- Dimensions (w x h x d)
3-place linear transporting unit 960 x 772,5 x 370 mm
4-place linear transporting unit 1300 x 772,5 x 370 mm
5-place linear transporting unit 1650 x 772,5 x 370 mm
10-place circular transporting unit 700 x 772,5 x 895 mm
- Weight
Linear transporting units: 39,5 kg
Circula transporting unit: 49 kg
- Operating conditions
15 to 35 °C; humidity < 75 % at 35 °C
- Plate positions and formats
3, 4, 5 or 10
Shallow well and deep well microplates: 96; 384; 1536
- Pipetting heads
96/25µl pipetting head
0.5 ≤ 10% 2-5 µl ≤ 2% >5-25µl ≤ 1%
96/60µl pipetting head 3-5 µl ≤ 2%>5-60 µl ≤ 1%
96/250µl pipetting head
25-100 µl ≤ 2% 25-250 µl ≤ 1%
384/25µl pipetting head
2-5 µl ≤ 2% >5-25 µl ≤ 1
384/60µl pipetting head
3-5 µl ≤ 2%>5-60 µl ≤ 1%
1536/8µl pipetting head 1-5 µl ≤ 3%5-8 µl ≤ 2%
Capillary head pipetting head
0.025-1,0 µl ≤ 10%
- Volume ranges
Wet pipetting: 100 nl – 250 µl
Dry pipetting: 25 nl – 250 µl
